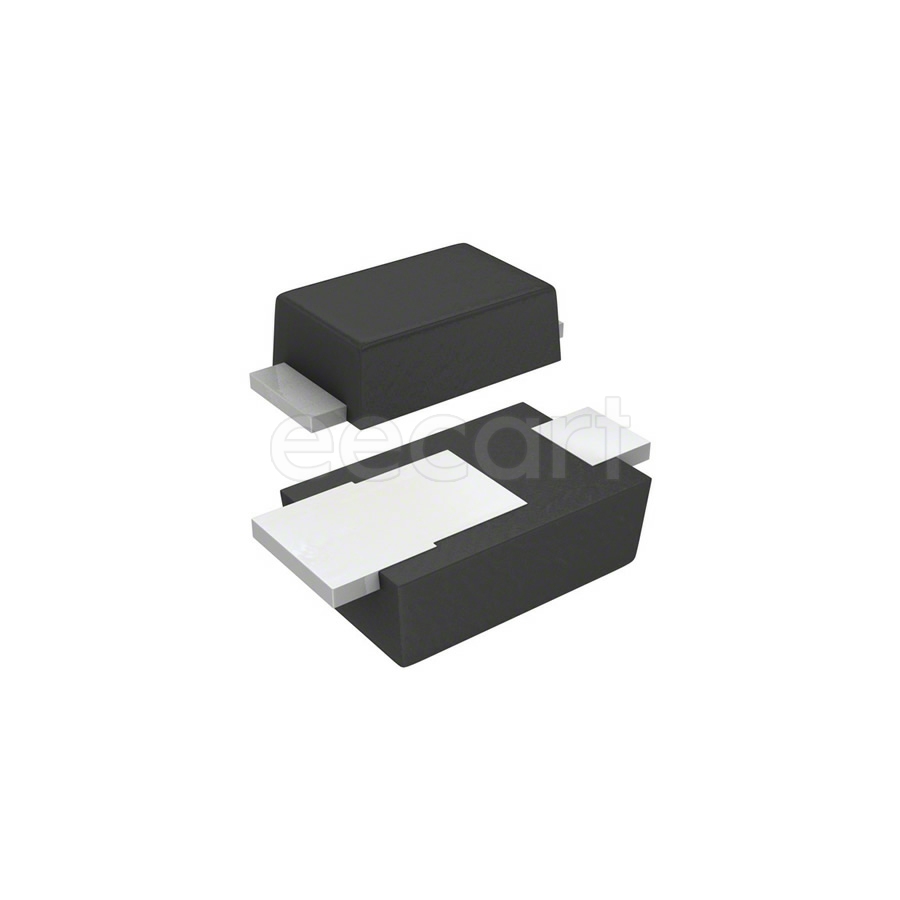

PD3S160-7
Manufacturer:
Diodes Incorporated
Mfr.Part #:
PD3S160-7
Datasheet:
Description:
Schottky Diodes PowerDI323-2 SMD/SMT Single Forward Current:1 A Forward Voltage:640 mV Max Repetitive Reverse Voltage (Vrrm):60 V Max Forward Surge Current (Ifsm):22 A
| Parameter | Value |
|---|---|
| Capacitance | 38 pF |
| Voltage Rating (DC) | 60 V |
| Length | 1.9 mm |
| Width | 1.25 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Height | 650 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Manufacturer Package Identifier | PD3S160-7 |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Current Rating | 1 A |
| Output Current | 1 A |
| Forward Current | 1 A |
| Forward Voltage | 640 mV |
| Average Rectified Current | 1 A |
| Max Reverse Voltage (DC) | 60 V |
| Max Repetitive Reverse Voltage (Vrrm) | 60 V |
| Element Configuration | Single |
| Forward Surge Current (Ifsm) | 22 A |
| Reverse Voltage | 60 V |
| Peak Non-Repetitive Surge Current | 22 A |
| Reverse Current | 50 µA |
| Schedule B | 8541100080 |
Stock: 3133
Distributors
pcbx
pcbxUnit Price$0.14284
Ext.Price$0.14284
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14284 | $0.14284 |
| 10 | $0.07142 | $0.71420 |
| 50 | $0.06350 | $3.17500 |
| 100 | $0.05645 | $5.64500 |
| 500 | $0.05160 | $25.80000 |
| 1000 | $0.04717 | $47.17000 |
| 3000 | $0.04312 | $129.36000 |
| 5000 | $0.03597 | $179.85000 |
